What are aftermarket parts?
Part #
MAP42887
/ 099-15-713

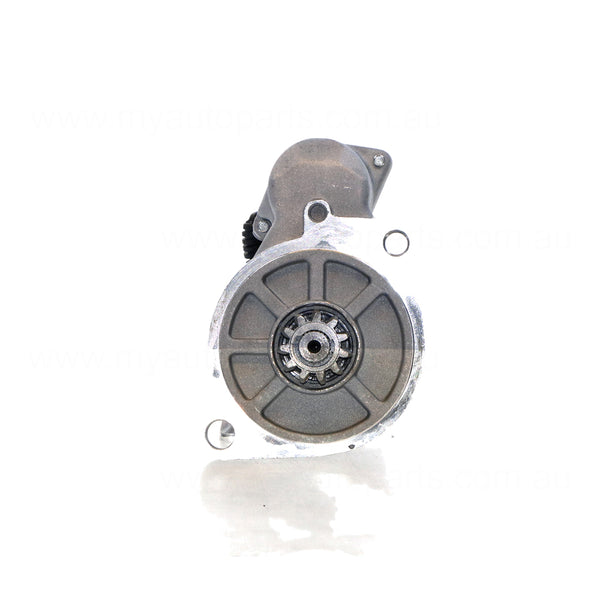

Starter Motor suits Bus Toyota Coaster fits 24V 4.5Kw Cw 11T Hino Dutro Ranger Fc Ft FD...
Starter Motor suits Bus Toyota Coaster fits 24V 4.5Kw Cw 11T Hino Dutro Ranger Fc Ft FD FF Fm GD Diesel only,
| Detail | Specification |
| Engine Code | S05C S05D J05CD J07CD J08C J08 |
| Engine Litres | 4.0 4.6 4.9 5.3 6.6 8.0 |
| Flange Diameter in mm's | 105 |
| Fuel Type | Diesel |
| Kw Rating | 4.5 |
| Mounting A Ctr to Ctr in mm's | 140 |
| Number of Pinion Teeth | 11 |
| Original Manufacturer | Sawa Fuji Type |
| Pinion at Rest in mm's | 31 |
| Pinion Diameter in mm's | 40 |
| Rotation | Clockwise |
| Transmission | Manual |
| Voltage | 24 |
| Warranty Period | 12 |
| Packaging Height | 190MM |
| Packaging Length | 336MM |
| Packaging Width | 246MM |
No reviews for this product
BB2/ RB20 HB30 10/86 - 1/90 HZB30 1/90 - 1/93 5/1982-1/1993
300 SERIES/DUTRO 2001-2/2007
500 SERIES / RANGER PRO 1/1998-12/2008
