What are aftermarket parts?
Part #
MAP29048
/ 098-03-1236

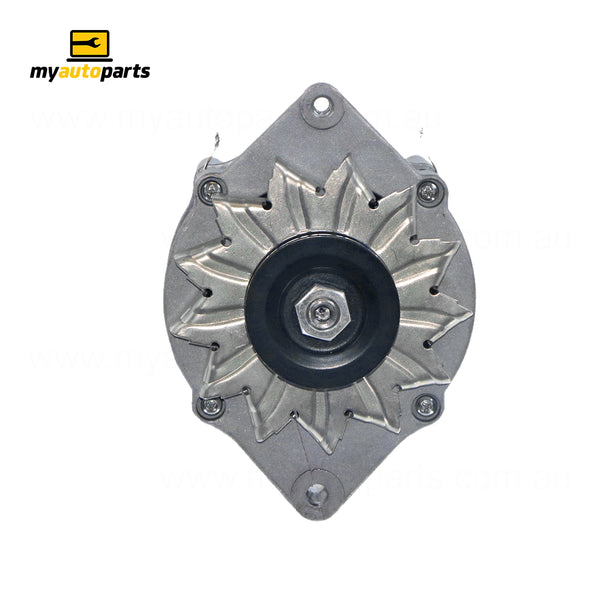

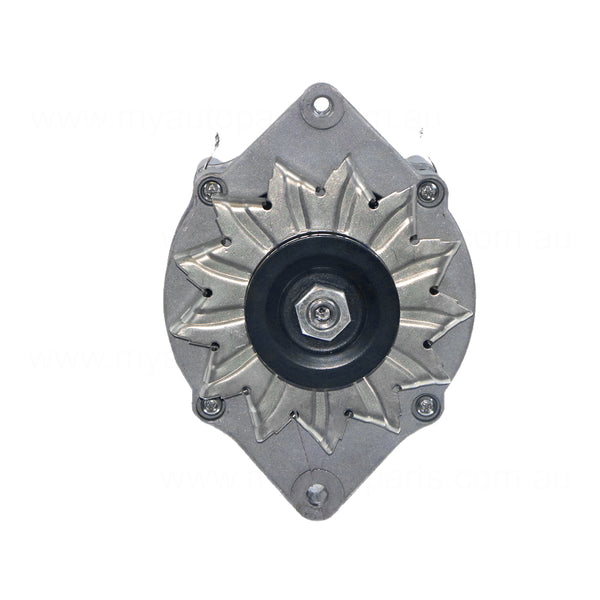

Alternator suits a variety of early Holden models. Including Camira built 11/1984 to 7/1989, Commodore built 11/1979...
Alternator suits a variety of early Holden models. Including Camira built 11/1984 to 7/1989, Commodore built 11/1979 to 2/1986, and Holden EJ, EH, HD, HR, HK, HG, HT, HQ, HJ, HX, and HZ, and Toranas built 11/1969 to 6/1979. Fits Toyota Corona XT130.
| Detail | Specification |
| Adjustment Arm length mm's | 170 |
| Amp | 55 |
| Mount Type Alternator | Single Foot |
| Original Manufacturer | Bosch |
| Pulley Diameter in mm's | 66 |
| Pulley Type | Single VEE |
| Regulator Type | Internal |
| Unit Weight in kg | 5 |
| Voltage | 12 |
| Inside FT - FT in mm's bottom | 56 |
| Plug Type | B+-D+ |
| Packaging Height | 144MM |
| Packaging Length | 242MM |
| Packaging Width | 190MM |
No reviews for this product
JD / JE 4Dr WAGON 11/1984-7/1989
VB / VC 4Dr WAGON 11/1979-9/1981
VH/VK 4Dr WAGON 10/81 - 85 10/1981-2/1986
4Dr / UTE WAGON 7/1962-1/1965
4Dr / UTE WAGON 4/1966-12/1967
4Dr / UTE WAGON 1/1968-6/1971
/ 4Dr / UTE WAGON 7/1971-2/1980
LC / LJ 4Dr 11/1969-2/1974
TA / LH / LX / UC 4Dr 3/1974-6/1979
XT130 4Dr / LIFTBACK WAGON 11/1979-1/1982
XT130 4Dr / LIFTBACK WAGON 2/1982-7/1983
